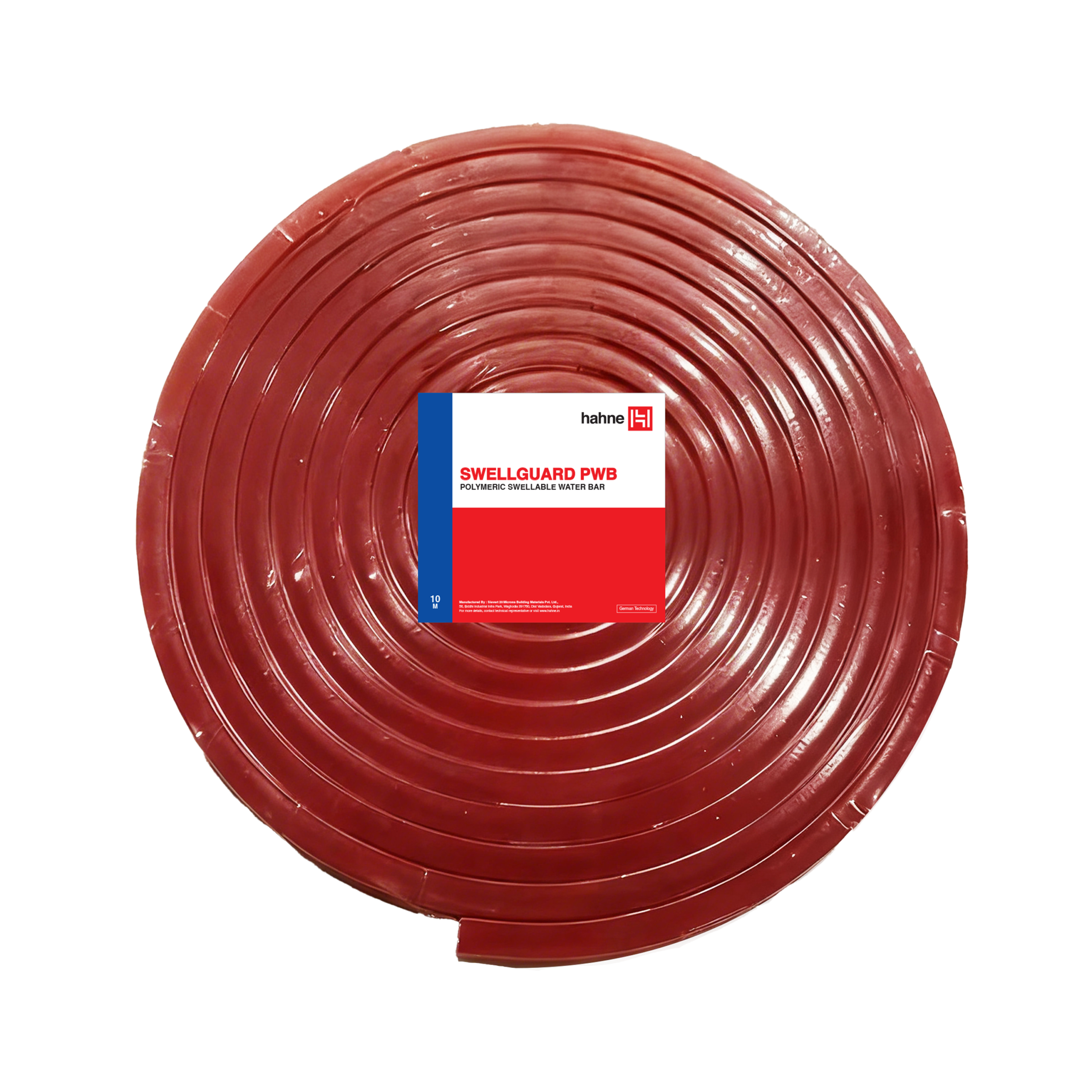

Polymeric Swellable Water Bar
hahne SwellGuard PWB is a hydrophilic, polymeric thermoplasticelastomer (TPE) swellable water bar designed for waterproofing and sealing construction joints in concrete structures. The water bar is formulated using a synthetic TPE blend together with hydrophilic components to provide controlled expansion when exposed to water.When water comes into contact with the water bar, the hydrophilic material absorbs water and expands, helping to seal gaps and restrict the passage of water through concrete construction joints. The polymeric construction also allows the material to release absorbed water and return towards its original dimensions after drying, enabling repeated swelling and recovery cycles.
- Hydrophilic TPE technology provides controlled swelling on contact with water.
- High elongation helps accommodate movement at concrete joints.
- Excellent flexibility for installation around typical joint configurations.
- Swelling helps seal and block potential water pathways through construction joints.
- Suitable for use in potable-water exposure conditions based on tested swelling performance.
- Maintains its polymeric structure during repeated wetting and drying cycles.
- Available in different cross-sectional sizes to suit project requirements.
- Easy to install using a suitable compatible fixing method.
- Construction and cold joints in reinforced concrete structures
- Basements and underground structures
- Water retaining and water-excluding concrete structures
- Water tanks and reservoirs
- Sewage and wastewater structures
- Concrete retaining structures
- Tunnels and underground infrastructure
- Pipe penetrations and other suitable concrete joint details
| Property | Test Method | Result |
|---|---|---|
| Tensile Strength | ISO 1798:2008 | ≥ 5 |
| Elongation at Break | ISO 1798:2008 | ≥ 400 |
| Shore A Hardness | ASTM D2240:2015 | 45 ± 5 |
|
Volume Expansion in Potable Water – 1 Day |
In-house Test | ≥ 100 |
|
Volume Expansion in Potable Water – 7 Days |
In-house Test | ≥ 250 |
