Waterproofing

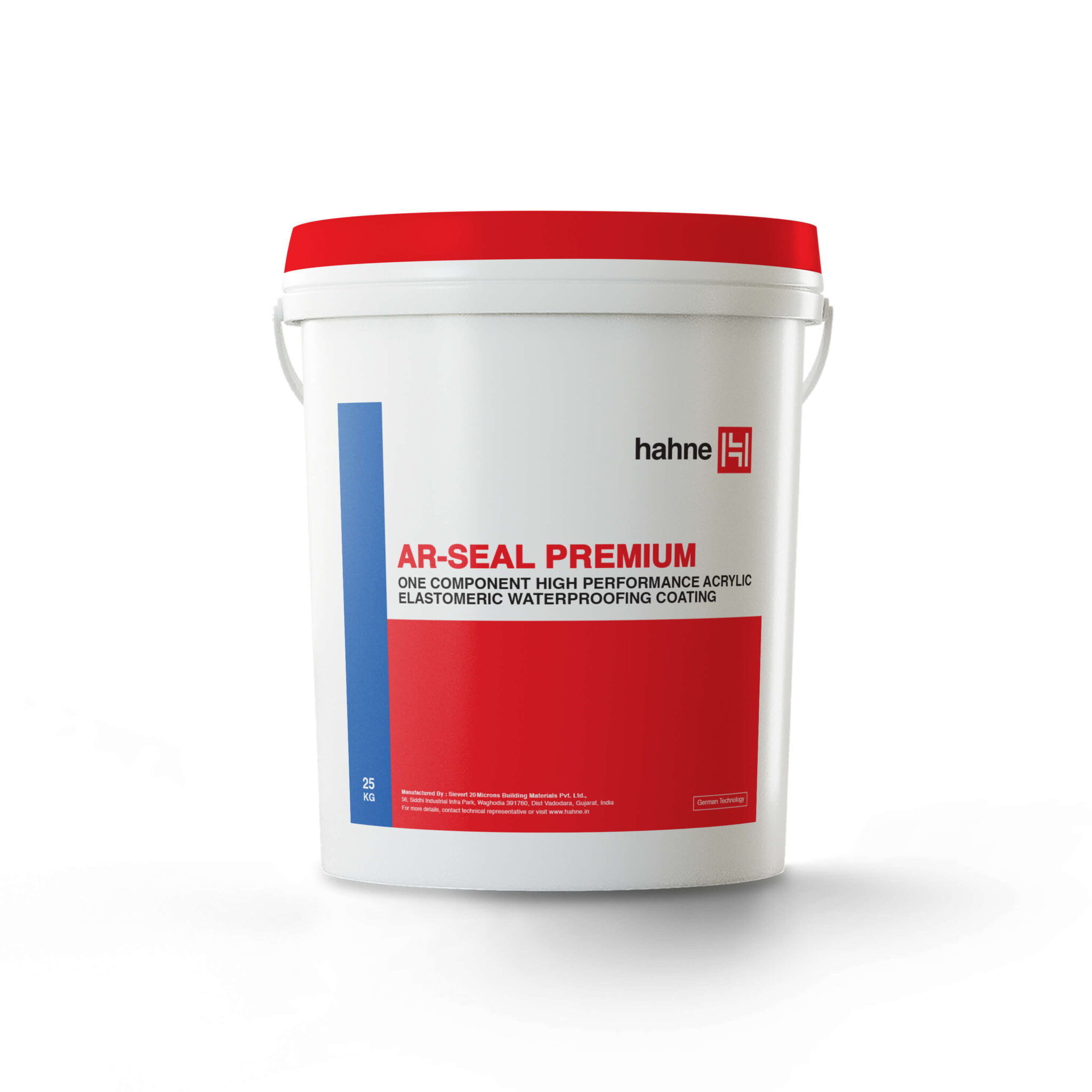

AR-SEAL PREMIUM High Performance Acrylic Elastomeric Waterproofing Coating
AR-SEAL PREMIUM
High Performance Acrylic Elastomeric Waterproofing Coating
hahne AR-SEAL Premium is a premium acrylic-based elastomeric waterproof membrane coating designed to provide a seamless, flexible and durable waterproofing layer. It is available in white colour and provides UV stability for exposed applications.
- Water-based acrylic elastomeric waterproof membrane coating
- Seamless and flexible waterproofing membrane with good crack-bridging capability
- Good water resistance and breathability
- Can be applied on suitable damp surfaces
- Good resistance to alkali, chalking and flaking
- UV stable for enhanced durability in exposed applications
Recommended Substrates / Area of Applications
- Roofs and terraces of buildings – flat and sloping
- New and existing concrete surfaces and suitable cementitious waterproofing systems
- Over suitable existing bituminous and acrylic coatings
- Reinforced cement fibre sheets and dry-wall partitions
- China mosaic tiles and metal roofs
- Wet areas and other suitable waterproofing applications
Colour
- White
Consumption
- Approx. 1.4 – 1.5 kg/m² @ 1 mm DFT in two coats.
*Consumption will vary depending on site and substrate conditions.
Surface Preparation
- The substrate must be sound, stable, clean and free from dust, loose particles, oil, grease, algae, fungus and other contaminants that may adversely affect adhesion.
- Remove all weak, loose or poorly bonded material from the substrate by suitable mechanical means and ensure that the surface is adequately prepared before commencing application.
- Existing cracks, joints, surface undulations and other visible defects should be suitably repaired using compatible repair materials before application of the waterproofing system.
- Ensure that the substrate has a suitable surface profile and is free from standing water. The surface should be allowed to attain suitable conditions before priming.
Priming
- Stir hahne PrimeStick-AR thoroughly before application to ensure uniform consistency.
- Apply a single, uniform coat of hahne PrimeStick-AR over the prepared substrate using a suitable brush or roller.
- Ensure complete and uniform coverage, particularly over porous areas, corners and other locations where additional penetration may be required.
- Allow the primer to dry completely before proceeding with the application of hahne AR-SEAL PREMIUM. The primer should not remain wet or tacky at the time of membrane application.
Application
- Stir hahne AR-SEAL PREMIUM thoroughly before application to ensure a uniform and homogeneous material.
- Apply hahne AR-SEAL PREMIUM using a suitable brush or roller in two uniform coats, maintaining the recommended consumption for achieving the required dry film thickness.
- Apply the first coat uniformly over the primed substrate, ensuring that the material is evenly distributed without excessive build-up, pinholes or missed areas.
- Where reinforcement is specified as part of the waterproofing system, immediately embed the recommended non-woven polyester reinforcement into the first coat while the material is still wet. Use a suitable roller to ensure proper wetting of the reinforcement and to remove trapped air or wrinkles.
- Allow the first coat to dry adequately before applying the second coat. The second coat should be applied uniformly and preferably in a direction perpendicular to the first coat to ensure consistent coverage.
- Ensure that the required total dry film thickness is achieved after completion of the specified coats. Additional material may be required depending on substrate porosity, surface profile and site conditions.
- Protect the freshly applied coating from rain, water, dust and other contamination until it has sufficiently dried.
- Avoid application when the ambient or substrate temperature is below 5°C or above 35°C, and do not apply during foggy conditions.
| Property | Test Method | Result |
|---|---|---|
| Non-Volatile Content (Solid Content) | ASTM D 1644-2001 | > 70% |
| Recoatability Time | ASTM D 1640-2014 | 8 hrs |
| Tensile Strength | ASTM D 412-2016 | > 1.5 N/mm² |
| Elongation at Break | ASTM D 412-2016 | > 200% |
| Crack Bridging Ability | EN 1062-7(A)-2004 | 2 mm |
| Depth of Water Permeability @ 5 Bar | EN 12390-8-2019 | Nil |
| Pull-off Adhesion Strength | ASTM D 7234-2022 | > 1.1 N/mm² |
| Water Vapour Transmission Rate | ASTM E 96-2024 | 60 g/m²·24 Hrs. |
| Shore Hardness | ASTM D 2240-2015 | > 50 |
| UV Resistance – 1000 Hrs | ASTM G 154-2023 | Pass |
“`
