Surface Coatings

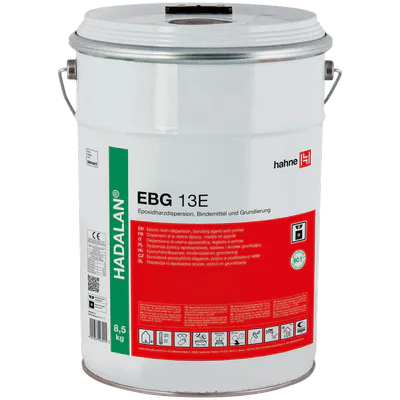

EBG 13E
EBG 13E
Epoxy Resin Dispersion, Binder and Primer
HADALAN® EBG 13E is a 2-component, highly reactive epoxy resin dispersion that can be used as a primer or in combination with HADALAN® filler mixtures in various layer thicknesses in many areas. Scratch levelling compounds and levelling coatings based on HADALAN® EBG 13E are water vapour permeable and can therefore also be used on substrates that are soaked on the reverse side without the risk of detachment or osmotic blistering. In HADALAN® Balcony Protection, it serves as a levelling compound in 2 mm layer thickness as a membrane layer and ensures vapour pressure equalisation on damp substrates. For subsequent system build-ups, press-on moisture must be excluded and, if necessary, the component must be allowed to dry down to the equilibrium moisture content.
- Emission test French VOC regulation A+
- Testing as surface protection system OS8 (rigid coating for surfaces subject to heavy mechanical loads)
- Fire behaviour classification according to DIN EN 13501-1
- Complies with DIN EN 13813:2002
- Emission testing GEV-EMICODE EC1PLUS
- VOC-free
- Solvent-free
- 2-component
- Vapour-permeable
- Osmosis-resistant
- Can be used on damp substrates
- Binder for synthetic resin mortar made of HADALAN® FGM012 57M
- Primer for mineral substrates
- Binder for scratch filler, levelling and filling compounds made of HADALAN® FGM003 57M
| Mixing ratio | 2.4 (comp. A) : 1 (comp. B) |
|---|---|
| Density of component A | 1.02 kg/l |
| Density of component B | 1.12 kg/l |
| Density, ready to use | approx. 1.05 kg/l |
| Viscosity | approx. 5.0 dPa·s |
| Processing temperature | +8°C to +25°C |
| Processing time |
approx. 30 minutes at +8°C approx. 20 minutes at +20°C approx. 15 minutes at +25°C |
| Diffusion-equivalent air layer thickness (sd-value) | 0.6 to 1 m |
| Revisability | after approx. 24 hours |
| Walkability | after approx. 6 hours |
| Resilience | fully loadable after approx. 5 days |
| Water vapour diffusion resistance μ | 300 – 500 depending on MV |
| Adhesive tensile strength |
approx. 2.5 N/mm² on concrete with
HADALAN® FGM003 57M (MV 1 : 2,3) approx. 3 N/mm² on concrete with HADALAN® FGM012 57M (MV 1 : 10) |
| Compressive strength |
30 N/mm² with
HADALAN® FGM003 57M (MV 1 : 2,3) 45 N/mm² with HADALAN® FGM012 57M (MV 1 : 10) |
At +20 °C and 60 % relative humidity
