Waterproofing

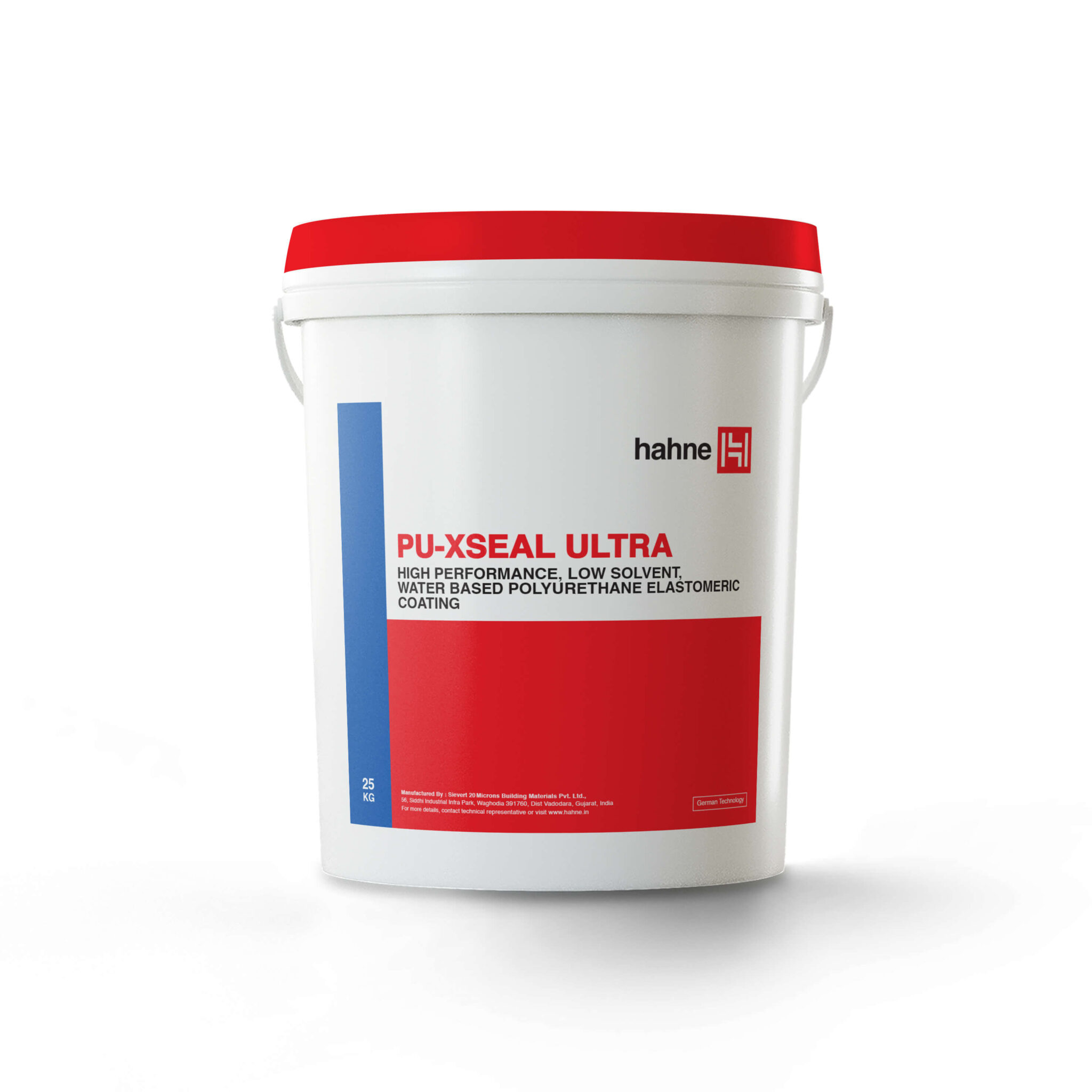

PU-XSEAL ULTRA
PU-XSEAL ULTRA
High- Performance Water Based Polyurethane Elastomeric Waterproofing Coating
hahne PU-XSEAL ULTRA is a water-based, low-solvent, highperformance elastomeric waterproofing membrane designed to form a seamless, flexible and durable protective layer over suitable building substrates. Its high elasticity and crack-bridging capability enable the membrane to accommodate substrate movement and provide reliable waterproofing performance. The product is suitablefor exposed exterior applications and is designed for applications requiring enhanced flexibility and crack-bridging performance.
- Water-based acrylic elastomeric waterproof membrane coating
- Seamless and flexible waterproofing membrane with good crack-bridging capability
- Good water resistance and breathability
- Can be applied on suitable damp surfaces
- Good resistance to alkali, chalking and flaking
- Roofs and terraces of buildings – flat and sloping.
- New and existing concrete surfaces and suitable cementitious waterproofing systems.
- Over suitable existing bituminous and acrylic coatings.
- Reinforced cement fibre sheets and dry-wall partitions.
- China mosaic tiles and metal roofs.
- Wet areas and other suitable waterproofing applications.
- Concrete roof slabs and terraces.
- New and existing roofs and walls.
- Exposed exterior waterproofing applications.
- Car porch roofs and suitable deck areas.
- Tile roofs and suitable tiled surfaces.
- Fiber cement boards and suitable building boards.
- Metal surfaces and gutters.
- Fire walls and other suitable waterproofing applications.
| Property | Test Method | Result |
|---|---|---|
| Non-Volatile Content (Solid Content) | ASTM D 1644-2001 | > 65% |
| Recoatability Time | ASTM D 1640-2014 | 8 hrs |
| Tensile Strength | ASTM D 412-2016 | > 1 N/mm² |
| Elongation at Break | ASTM D 412-2016 | > 150% |
| Crack Bridging Ability | EN 1062-7(A)-2004 | 1.5 mm |
| Resistance to Hydrostatic Pressure (Negative Side) @ 5 Bar | ASTM D 7088-2017 | Pass |
| Depth of Water Permeability @ 5 Bar | EN 12390-8-2019 | Nil |
| Pull-off Adhesion Strength | ASTM D 7234-2022 | > 1 N/mm² |
| Water Vapour Transmission Rate | ASTM E 96-2024 | 60 g/m²·24 Hrs. |
